Cu Or Al Film Strip Winder Transformer Foil Winding Machine Automatic Cold Welding

Brand Name : STT

Model Number : BRJ200

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 45 days

Packaging Details : seaworthy packing

Product name : cold welding foil winding machine

Function : winding foil

Foil width : maximum 200mm

Foil thickness : 0.2 - 3mm

Motor power : 4kw

Decoiler : one

Color : as per requirements

Warranty : 12 months

Contact Now

Automatic Cold Welding Cu or Al Strip Film Winder Transformer Foil Winding Machine

Description of transformer foil winding machine BRJ200

Cold welding transformer foil winding machine BRJ200 is a professional winding machine for winding copper or aluminium film strip to make transformer coil and other similar products. The foil winding machine can be used to handle one layer of copper or aluminium strip with max width 200mm and one layer of insulation paper. The foil winding machine adopts servo motor to drive, which assures the precise winding. The foil decoiler is used to place foil material, the expansible range of foil decoiler can be customized as per needs.

Quick details of transformer foil winding machine BRJ200

Automatic winding foil
Automatic cold welding
Cu foil thickness 0.2 - 2.0mm
Al foil thickness 0.3 - 3.0mm
Winding speed 60rpm
Winding power 4kw
Customizable color
12 months warranty period

Technical parameters of transformer foil winding machine BRJ200

Typical standard specifications of foil winding machine BRJ200 are shown below, however, the foil winding machine can also be manufactured as requested.

Foil Width:	50 ~ 200mm
Maximum Wound Coil OD. :	600mm
Conductor Foil Material:	Copper or aluminum
Cu Foil Thickness:	0.2-2.0mm
Al Foil Thickness:	0.3-3.0mm
Foil Material ID.:	500mm
Foil Material OD.:	≤ 1000mm
Foil Decoiler Number:	1 pc
Foil Decoiler Length:	250mm
Foil Decoiler Expanding Range:	Φ420 ~ Φ520mm
Rectifying Mode:	Photoelectric sensing
Rectifying Deviation Precision:	±0.5mm
Cleaning Unit:	pneumatic
Insulation Paper Decoiler Number:	1set
Insulation Paper Coil OD.:	≤ 400mm
Insulation Paper Coil ID.:	76mm
Insulation Decoiler Width:	250mm
Insulation Paper Decoiler Shaft:	Expandable (pneumatic open/close action)
Winding Speed:	0 ~60 RPM
Max. Working Torque:	3,000N.m.
Winding Power:	4kw
Cold Welding Device:	1 set
Positioning Device:	1set
Grinding Device:	1 set
Cold Welding Mould:	6 sets
Control system:	PLC
Operation Interface:	Touch screen
Counting Range:	0 - 9999.9

Cu Or Al Film Strip Winder Transformer Foil Winding Machine Automatic Cold Welding

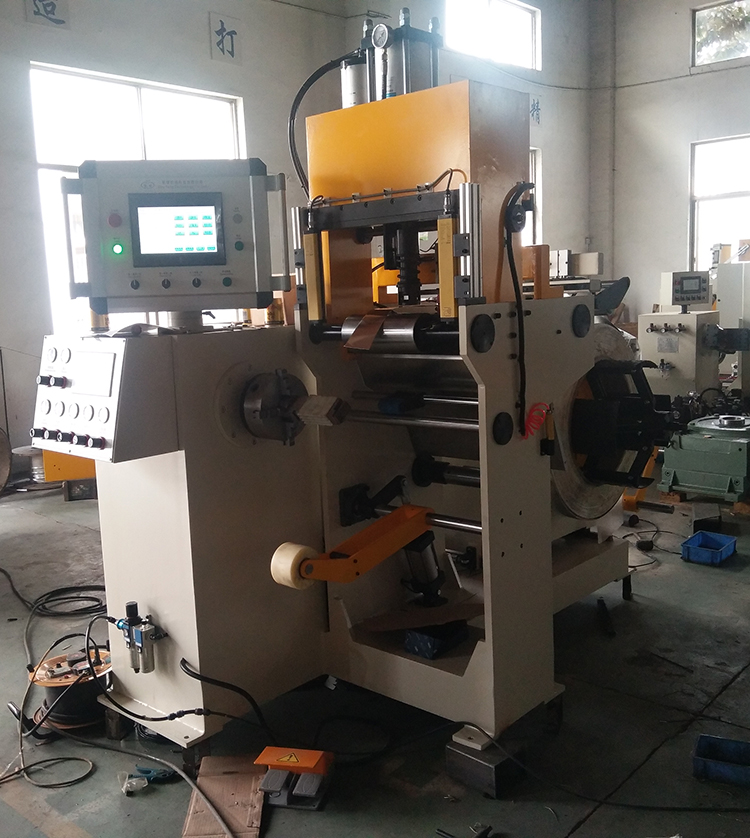

Fig 1: Transformer foil winding machine BRJ200's full view

Cu Or Al Film Strip Winder Transformer Foil Winding Machine Automatic Cold Welding

Fig 1: Transformer foil winding machine BRJ200's side view

Cu Or Al Film Strip Winder Transformer Foil Winding Machine Automatic Cold Welding
